- Communication method: Wi-Fi
- Plug Type: EU Plug
- State of Assembly: Ready-to-Go
- Gyro: GYRO
- Model Number: Switches
- Features: Ride On
- Brand Name: CBE
- Origin: Mainland China
- Certification: CE,RoHS
- Current: 10A
- Material: Plastic
- Switch Type: Remote control
- Power Supply: Neutral+Live wire
- Rated Voltage: AC 90V-250V / 50-60Hz
- Rated Power: 1800W
- Wireless standard: IEEE802.11b/G/N
- Safety: WEP/WPA-PSK/WPA2-PSK
- Radio protocol: Wi-Fi 2.4GHz b/g/n
- Static power loss: Less than or equal to 0.3
- WEncryption: WEP/AES/TKIP
- Max Load: 10A
- Voice Control: Alexa
- Smart Home: Google Home,Smart Life
- Smart Control: Yandex Alice
- APP: TUYA Smart

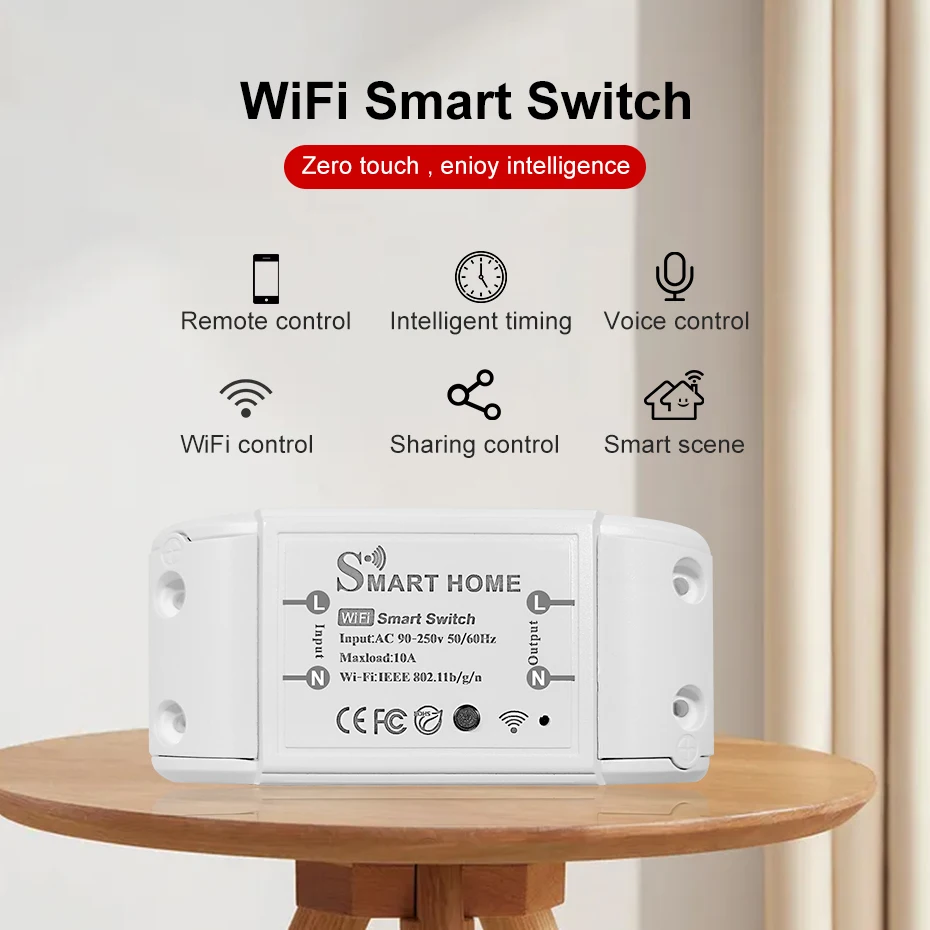

Tuya DIY smart switch introduction
Main Features:
I.Voice control:once you have this switch,you can connect it with Amazon Alexa(Amazon echo/dot/tap) or Google Assistant for voice control.
II.Wi-Fi Remote Control:You can use "Smart Life" APP in your smart phone to control the switch wirelessly with Wi-Fi or 4G network.no hub required.
III.Timing Function:Take full control of your home or office lights thanks to schedule timer that will allow you to plan the exact time to turn lights and appliances on/off automatically
IV.Share Device:This samrt switch can have several control sites shared by different family members.one mobile phone can control many switches also.
V.Add More Features with IFTTT:'If this,then that' is a free web-based service the let you do amazing things with your light switch, turn lamps,fans or other electronics on before you back home or off, Supporting IFTTT as well.
Product information
Current: 10A
Material: Plastic
Switch Type: Remote control
Power Supply: Neutral+Live wire
Rated Voltage: AC 90V-250V / 50-60Hz
Rated Power: 1800W
Wireless standard: IEEE802.11b/G/N
Safety: WEP/WPA-PSK/WPA2-PSK
Radio protocol: Wi-Fi 2.4GHz b/g/n
Static power loss: Less than or equal to 0.3
WEncryption: WEP/AES/TKIP
Max Load: 10A
Voice control
Voice control to Switch on or off the lights
Share Control
Timer and Schedule
set up timing schedules to save the trouble of overcooking the dish
single / repeat /countdown / loop timer
APP remote control
Connection Diagram
eWeLink DIY smart switch introduction
Model Number: eWelink smart switches
State of Assembly: Ready-to-Go
name: mini WiFi ewelink remote smart switch
voltage: AC 90-250V 50/60Hz
rated current: 10A
resistive load: 2200W(AC220V)
inductive load: 500W(AC220V)
capacitive load: 200W(AC220V)
incandescent lamp: 2200W
energy-saving lamp: 300W
LED lamp: 300W
WiFi standard: IEEE 802.11 b/g/n 2.4GHz
APP: ewelink APP
material: ABS V0
How to connect Tuya/Smart Life APP
